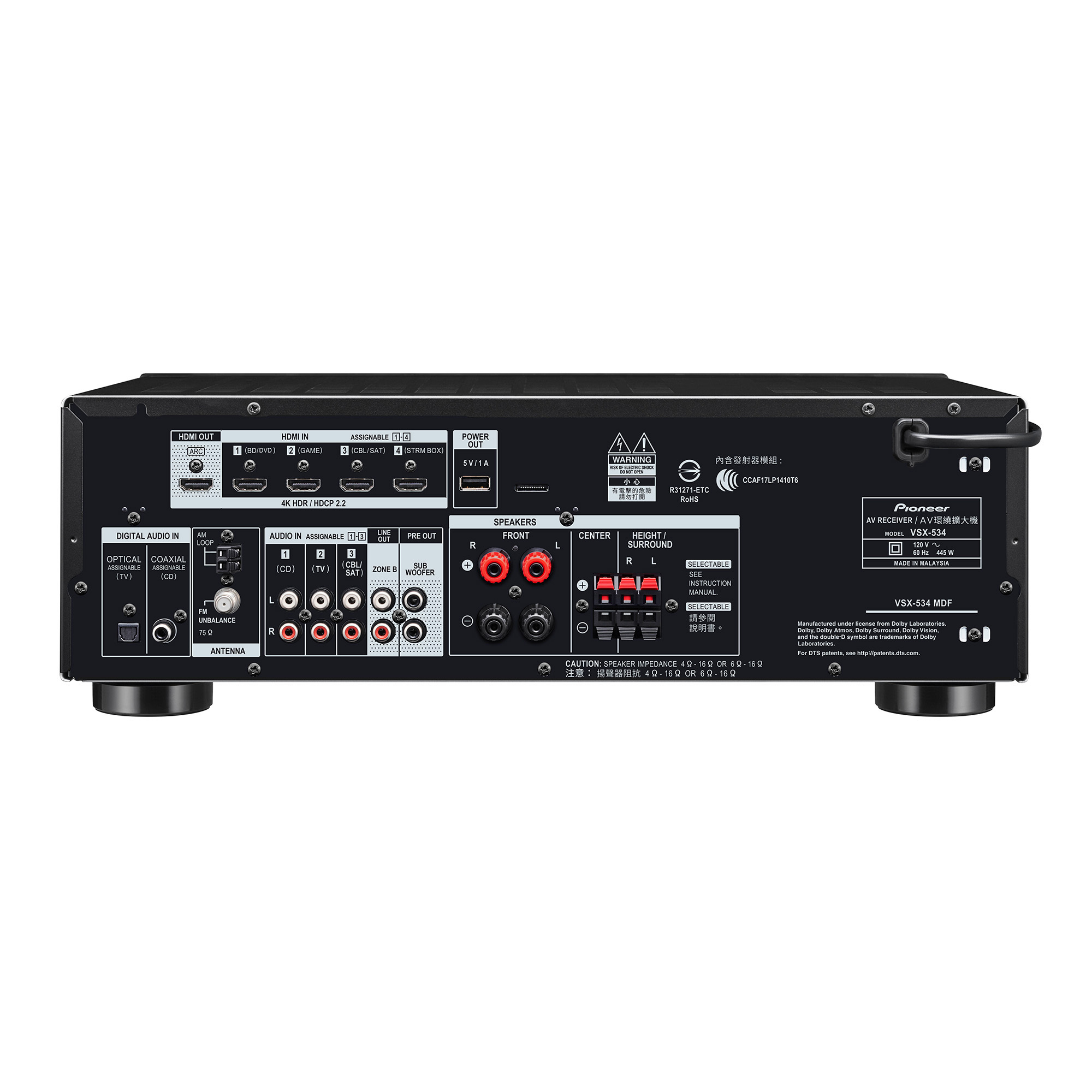

VSX 534 B Back MDF 2000x2000 VSX 534 B Back MDF 2000x2000

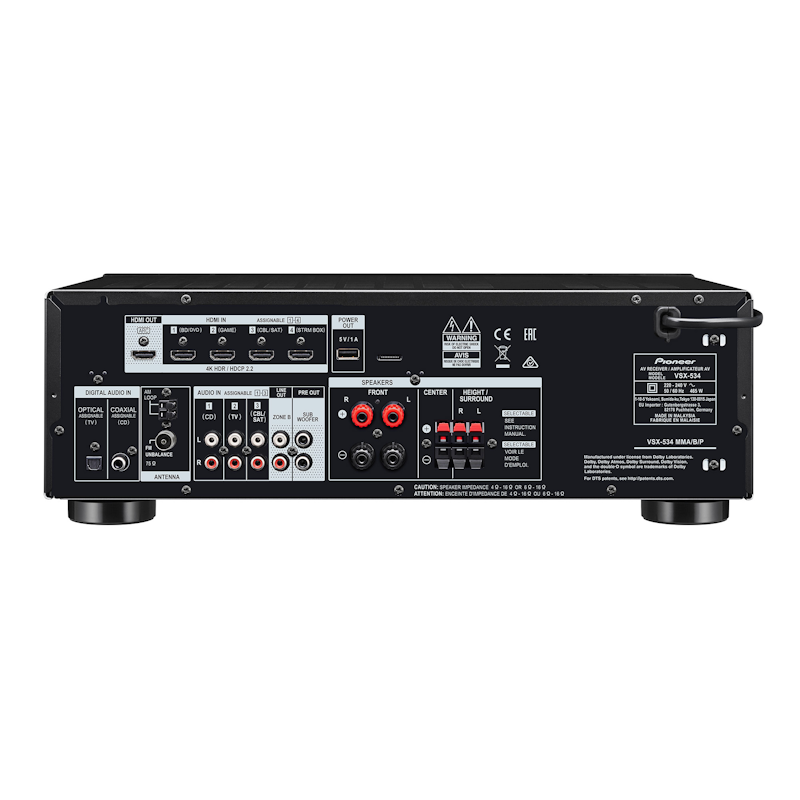

VSX 534 B Back MMA 2000x2000 VSX 534 B Back MMA 2000x2000
VSX 534 B Angle R 2000x2000
VSX 534 B Angle L 2000x2000
VSX 534 B Front plus Remote 2000x2000
VSX 534 B Back MDF 2000x2000
VSX 534 B Back MMA 2000x2000
1 of 5

VSX-534

5.2-Channel AV Receiver

A top-notch receiver with surround sound capabilities, without spending a fortune

Pioneer VSX 534 Intro 1920x934
Pioneer VSX 534 Intro 1920x934

The VSX-534

5.2-Channel AV Receiver

The VSX-534 5.2 Channel AV Receiver features Dolby Atmos® immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly design with a 12% slimmer size than the previous model for easy installation. A 4K indicator and Personal Preset and Bluetooth® Input buttons on the front panel make it easy to setup. Immerse yourself in enveloping sound with Dolby Atmos and DTS: X® audio formats. Even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium 4K content.

Pioneer VSX 534 Dolby Atmos 2000x2000
Pioneer VSX 534 Dolby Atmos 920x585

All encompassing sound

Reproduce object-oriented sound with Dolby Atmos in smooth, curving or realistic, three-dimensional, overhead movements. And with Height Virtualizer, Dolby Atmos creates virtual height effects from traditional speaker layouts without employing additional surround or height speakers.

Pioneer 4 K 2000x2000
Pioneer 4 K 1920x934

4k HDR ready

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. Additionally 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector; and all terminals are HDCP 2.2 compliant.

Pioneer Streaming 1 2000x2000
Pioneer Streaming 1 920x585

Smooth & easy Bluetooth

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

Pioneer MCACC 2000x2000
Pioneer MCACC 920x585

Customized to you

MCACC auto room tuning uses a custom microphone to automatically compensate for differences in speaker size, level and distance, and equalizes response, so you get the even sound you’re supposed to.

Additional features

DTS:X

Can automatically adapt the audio to the existing channels and speaker system, so no specific speaker layout is required.

DTS Virtual:X

With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layouts. DTS Virtual:X works with all DTS codecs, including DTS:X.

Dialogue enhancement

Make volume adjustments to the range including dialogue in films, with the up/down key on the remote control.

Personal preset

Just press the Personal Preset button on the front panel for three seconds; and your current settings, such as volume level and listening mode, can be saved. Up to three presets can be registered and easily recalled from the front panel button or remote control.

Specs

Power

Amplifier Design Direct Energy
Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven) 80 W/ch
Estimated Power Consumption/Network Standby off 445 W/0.1 W
Channels 5.2
Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) 150 W/ch

Decoders & Formats

Digital Core DSP Engine Digital Quad-Core 32-bit DSP (Cirrus Logic)
Audio Processing -
Music File Playback 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB
Dolby Atmos Yes
Dolby TrueHD Yes
DTS:X Yes
DTS Neural:X Yes
HDMI SACD Transfer 2 Channel
Audio DACs 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
iPod Digital Audio -
High-Definition Copy Protection (HDCP) 2.2
Dolby Atmos Height Virtualizer Yes (* Available with future firmware update)
Dolby Digital Plus Yes
DTS-HD Master Audio Yes
DTS Virtual:X Yes

Soundfield Calibration

Phase Control Yes
MCACC Memory 1
EQ Bands 9-band
X-Curve -
Polarity Check -
MCACC Yes
Standing Wave Control -
Symmetric EQ Yes
Distance Adjustment 0.1 feet
Auto Subwoofer Crossover Yes

Listening Modes

Auto Surround Yes
Advanced Surround 10+1
Front Stage Surround Advance Yes
Virtual Speakers -
Stream Direct Yes (Direct, Pure Direct)
Wide Surround -
Headphone Surround -

Audio Features

Dialog Enhancement Yes
Sound Retriever AIR -
Tone Control Multi
Speaker A/B -
Advanced Sound Retriever Yes
Digital Noise Reduction -
Sound Delay (Lip Sync) Yes
Bi-Amp Yes

Video Processing

4K Ultra HD Pass-Through Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)
3-D Ready Yes
HDMI Standby Through Yes with Input Switch / Last Memory
HDMI 36-bit Deep Color Yes
Video Processor -
Component Video Scaler -
Pure Cinema I/P Converter -
3D Noise Reduction -
4K Ultra HD Video Scaler Ultra HD Upscaling
Audio Return Channel Yes
Dolby Vision Compatible Yes
HDMI x.v. Color Yes
Video Converter to HDMI Yes
Composite Video Scaler -
Advanced Video Adjustment -
Super Resolution Yes

Connectivity

HDMI Input / Output 4 In (Rear) / 1 Out
Wi-Fi Built-In -
Wireless Adapter Port -
Component Video Input / Output -
iPhone / iPod / USB Memory Input -
Ethernet Input -
Digital Audio Inputs / Output 2 In (Optical 1, Coaxial 1)
Headphone Output Yes
AM/FM Presets AM/FM Tuner 40 Presets
MHL 2 -
Bluetooth Built-In Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)
Bluetooth Adapter Port -
Composite A/V Input / Output -
USB Terminal Rear
Analog Audio Inputs / Output 2 in / 0 out
Pre-Amp Output 0.2 ch.
Front A/V Inputs USB / 3.5mm stereo mini jack

Installation

On-Screen Display User-Friendly GUI with System Setup Menu
Multi-Room and Source Output -
Multi-Zone On-Screen Display -
Function Rename -
Sleep Timer Yes
Auto Power Down Yes
IR Serial Remote In/Out -
FL Dimmer Yes
Remote Yes
Versatile Speaker Configuration FRONT, CENTER, SURROUND/HEIGHT

Construction

Front Panel Brushed
Speaker Terminals 2 large + 3 clip

Warranty

Warranty 1 Year Parts & Labor

Dimensions

W x H x D (inches) Wi-Fi Antenna's Up -
Weight 17.6
W x H x D (inches) 17-1/8 x 5-13/16 x 12-5/8

Docs

Spec Sheets

For more technical detail, download the Spec Sheets here: VSX 534 MMP 190111 HR , VSX 534 D MMP 190304 HR .

Product Manuals

Download the Product Manuals for VSX-534 here: SN29403609 VSX 534 En 190125 web , SN29403609 VSX 534 Fr 190125 web , SN29403609 VSX 534 Es 190125 web .
